500 AMIG-MAG · inverter · pulse
ROBOPULSE
The robot power source. Communication bridge included — ready to use on the day the arm arrives.
Input 400 V 3~
Output 500 A
Duty cycle see datasheet
Processes pulse, standard, cold pulse
GYS in the USA / Automation
Automation

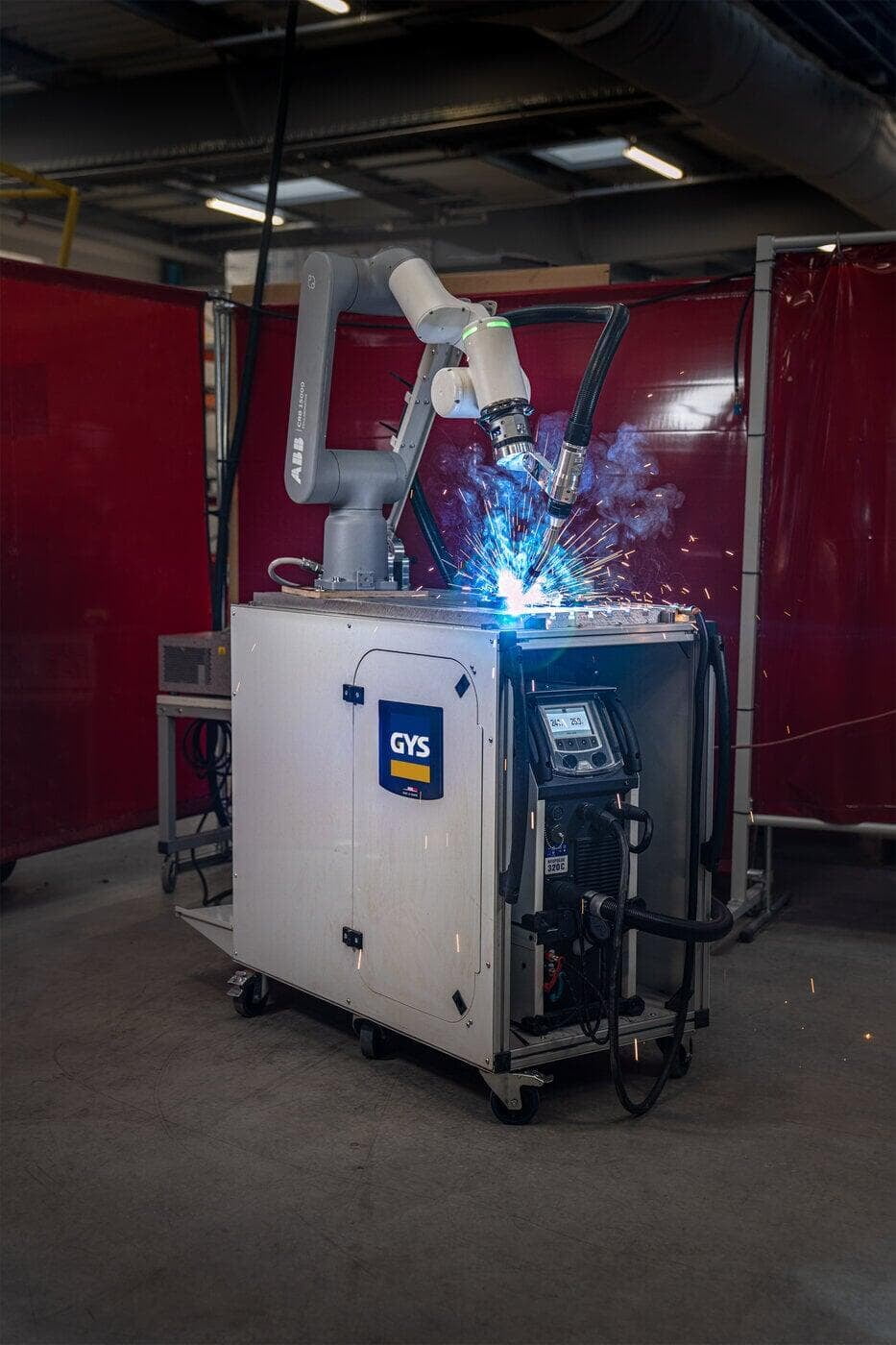

Welding power for your robot or cobot cell.
GYS builds the power source, the wire feeder, the torch and the bridge to your controller. You build the cell. ROBOPULSE and NEOPULSE talk Ethernet/IP, Profinet, Modbus TCP and EtherCAT out of the box.
ABB · FANUC · KUKA · Yaskawa robot controllers
Universal Robots · Dobot cobots
Nine PLC brands Siemens to Rockwell
GIN — one update reaches every connected device
How it fits
Four pieces. One network.
01
Power source
ROBOPULSE or NEOPULSE pulse MIG-MAG; KRYPTON or TITANIUM for TIG; NEOCUT for plasma. Rack or cart mounted.
02
Feeder & torch
Robot wire feeders sized for the source, air- or water-cooled robot torches, KOOLWELD 5 cooler, SMARTFEED MB-PP push-pull.
03
The bridge
Fieldbus interface to the robot controller or PLC — Ethernet/IP, Profinet, Modbus TCP, EtherCAT. Command cable and robot kit in the box.
04
GIN & configurator
GYS Internal Network keeps every device on one firmware. The online configurator builds your cell and hands you the installation files.
The range
Request any datasheetBuilt for the arm, not adapted to it.
500 A
to 500 AMIG-MAG · inverter · pulse

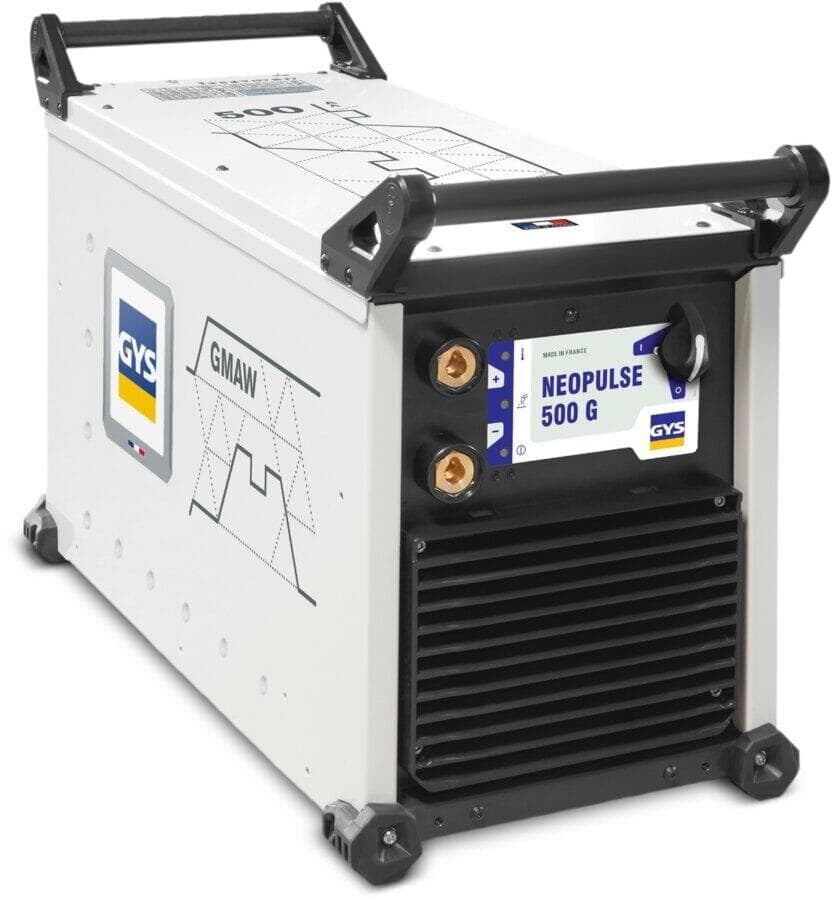

NEOPULSE for robot & cobot

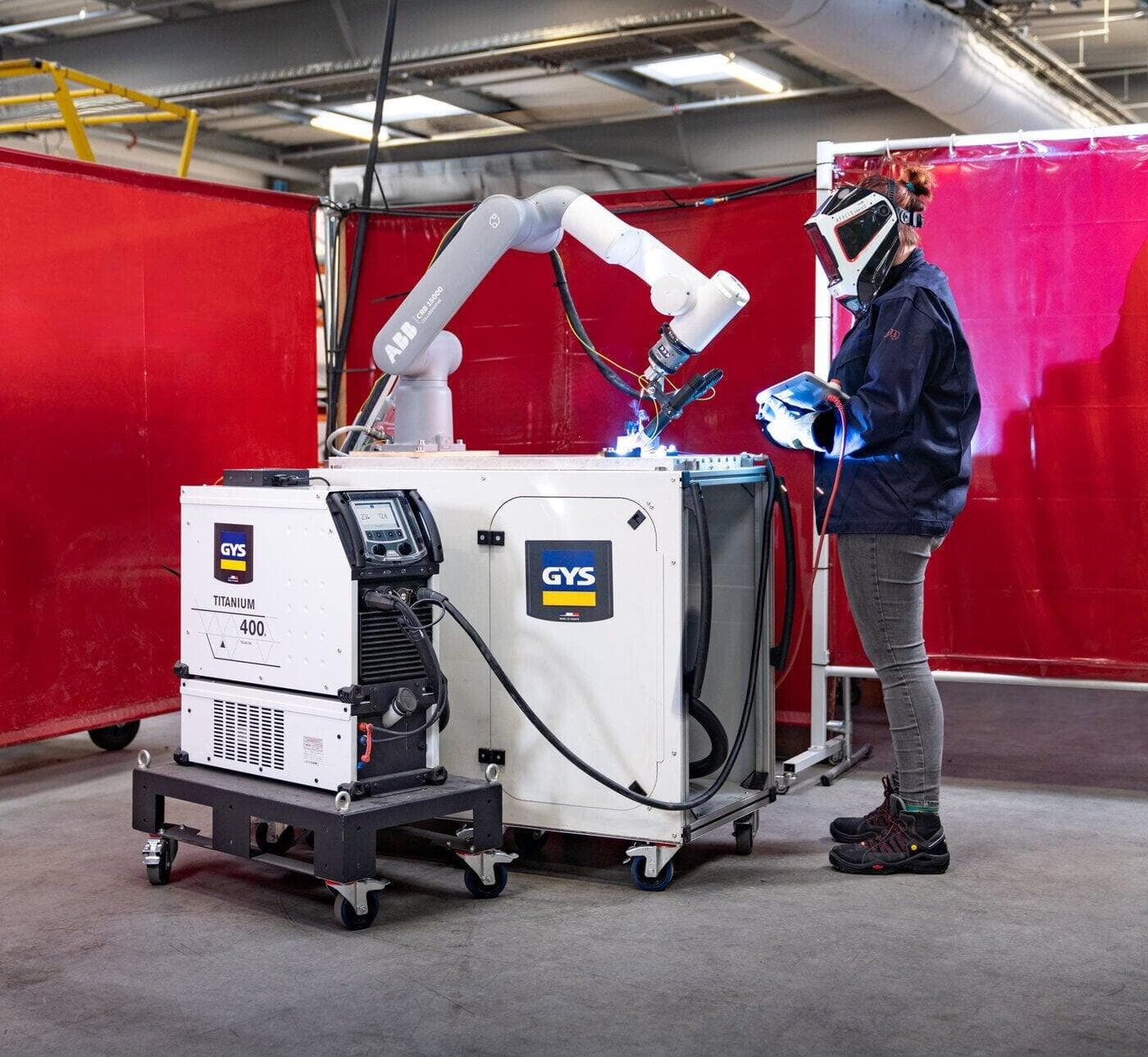

The synergic pulse family adapted for UR and Dobot cells and light robot duty. Same torches, same feeders, same GIN.
Input see datasheet
Output model-dependent
Cobots UR e-Series/CB3, Dobot CR
Protocol Modbus TCP
TIGTIG · DC and AC/DC

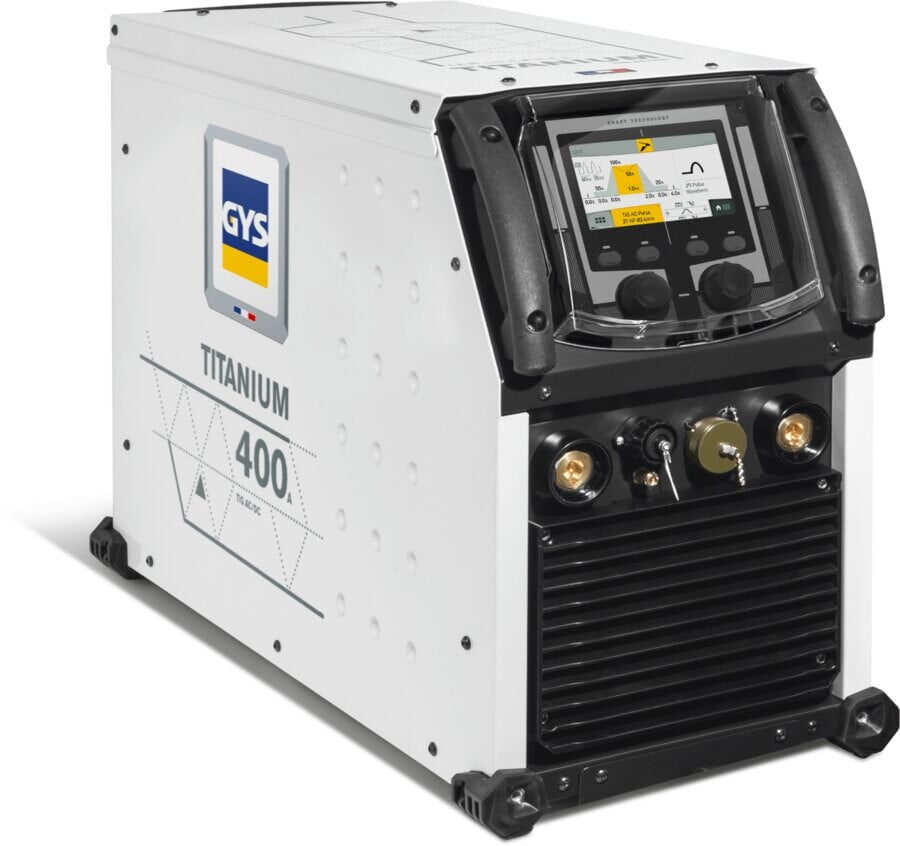

KRYPTON & TITANIUM for robots
KRYPTON TIG DC and TITANIUM TIG AC/DC with the robot interface, for automated stainless and aluminum.
KRYPTON TIG DC
TITANIUM TIG AC/DC
Cooling water unit available
Output see datasheet
PlasmaPlasma cutting · automated
NEOCUT
Inverter plasma with the interface for tables and robots; machine torches and consumables in the same catalogue.
Output see datasheet
Torch machine torch
Duty see datasheet
Interface CNC / robot
FeedFeeders · torches · cooling

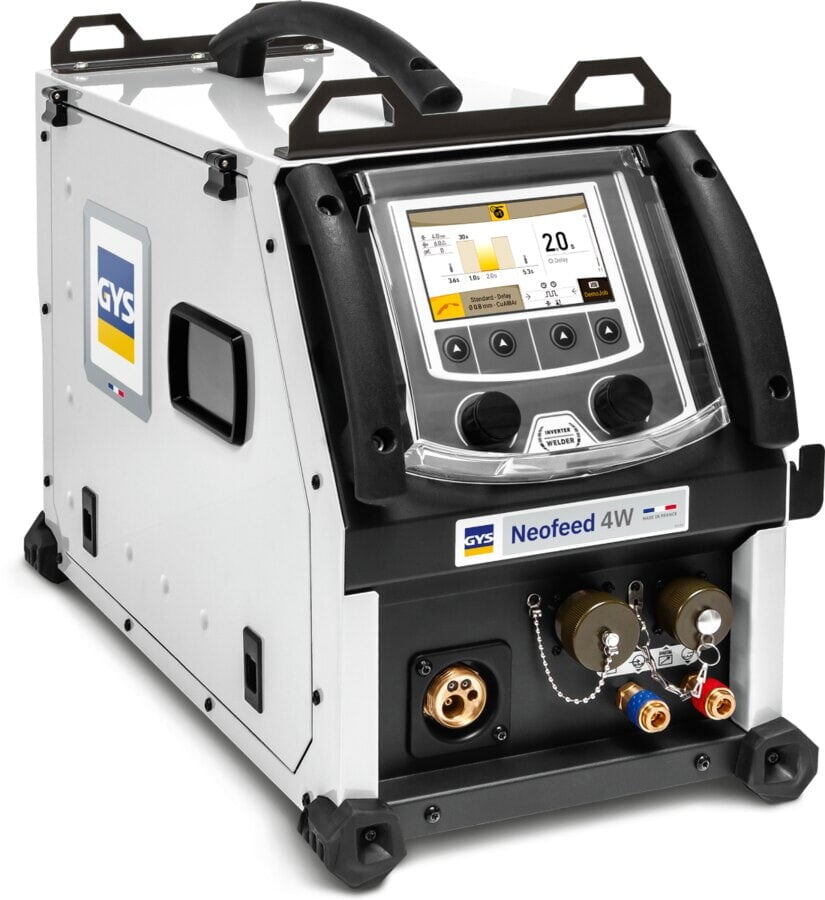

Wire feeders & robot torches
Feeders for ROBOPULSE and NEOPULSE, air- and water-cooled robot torches, KOOLWELD 5 cooler, pallet trolley, robot kits.
Torches air / water
Cooler KOOLWELD 5
Push-pull SMARTFEED MB-PP
Kits per robot brand
BSUBattery support · end of line

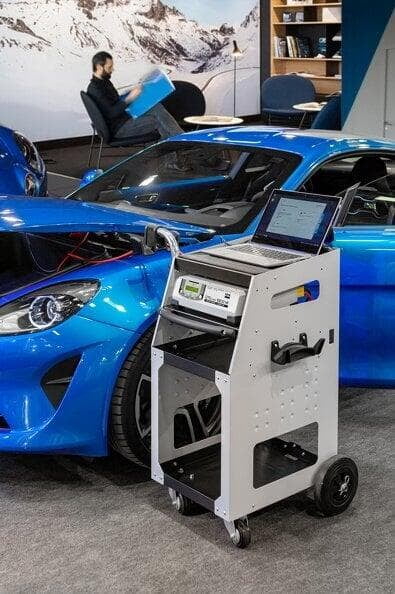

GYSFLASH PRO FACTORY
Battery support for assembly lines and end-of-line test — the production-floor member of the GYSFLASH family.
Use factory / EOL
Family GYSFLASH PRO
Output see datasheet
Control connected
Specs marked "see datasheet" are on the GYS datasheet linked from each card; we don't restate a number we haven't read from the source.
Compatibility
If it has a fieldbus, it has a GYS.
Published by GYS for the ROBOPULSE and NEOPULSE families. Your controller not listed? Ask — the interface is the same four protocols.
Robots
ABB — IRC5 single, compact, panel-mounted
FANUC — R-30iB, R-30iB Mate / Mini
KUKA — KR C5
YASKAWA — YRC1000
FANUC — R-30iB, R-30iB Mate / Mini
KUKA — KR C5
YASKAWA — YRC1000
Cobots
Universal Robots — e-Series, CB3
Dobot — CR series
Dobot — CR series
PLC & protocol
Beckhoff · Delta · Omron · Pro-face · Rockwell Automation · Schneider Electric · Siemens · Unitronics · Wago
Ethernet/IP · Profinet · Modbus TCP · EtherCAT
Ethernet/IP · Profinet · Modbus TCP · EtherCAT
In the controller
Twelve functions the cell can call.
Search & safety
Position search · Collision · Safety stop · Quick stop
Wire-touch position search; collision detection cuts the arc and reports; stops the controller can trust.
Wire handling
Wire stick · Wire cut · Retract · End wire
Stick detection, programmed cut, retract on stop, end-of-wire signal to the robot before the spool runs dry.
On the fly
Changed on the fly · Delta wire speed
Parameter changes mid-seam without stopping the arm; wire-speed offsets per program.
Precision
HF adjustment · Double calibration
Tuned high-frequency start for TIG; two-point calibration so the source and the arm agree.
Integrators & industrial supply
Building cells in the US? Let's build the GYS side together.
Robot and cobot integrators, industrial distributors, fab shops automating their first seam — the US network for GYS automation is being formed now. It starts with one short form.
GYS is the welding equipment inside the cell; robots and cobots are named for compatibility only and belong to their makers.
